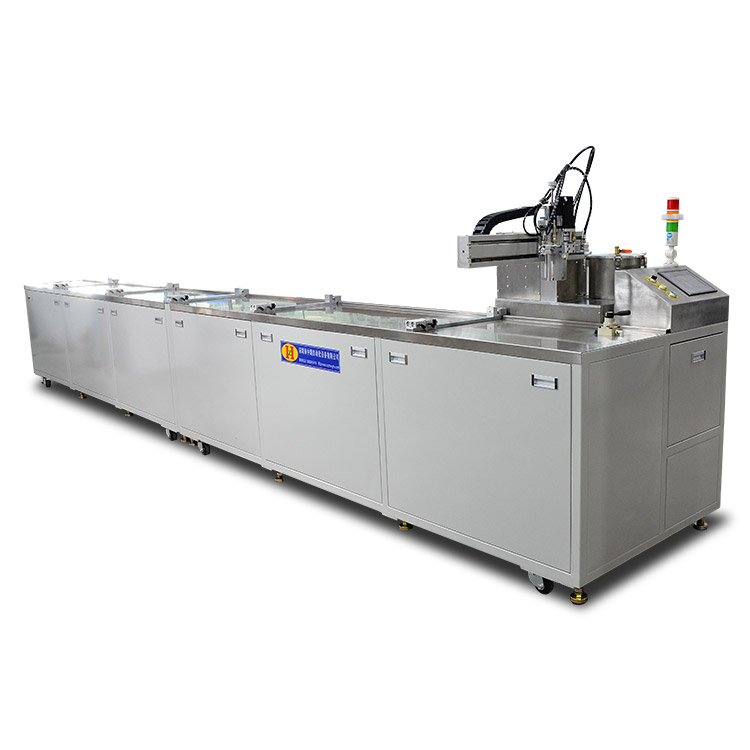

Soft light bar filling machineCategory：Soft light bar filling machine
Hotline:0755-2728-6106
| Application: Five meters soft light bar gluing
| Principle of operation：
1. Workpiece fixed, filling head movement, the pump body (stepper motor drive) for the plastic;
2. Light bar set in a special fixture potting.
| Characteristics of Three-axis Movement:
1, easy to operate: touch screen display operation; all Chinese interface, the parameters of records, display, alarm; for each product to provide the corresponding fixture, the workers training is simple, saving training time training costs;
2, the amount of plastic precision: all key components are imported products, to ensure high speed, precision at the same time, to meet the conditions of automated production under the high reliability requirements.
3, the workpiece shape is not greater than 5050 * 300mm The same product can be used glue potting (special specifications, please contact our company)
| Device Configuration:
|
NO. |
Program |
Description |
|
1 |
Control System |
Panasonic Original PLC, 7.2-inch Kunlun on-state touch screen |
|
2 |
Software system |
Zhonghu R&D independently |
|
3 |
Bujin motor |
YAKO R&D original motor |
|
4 |
Cut off the system |
Zhonghu professional and technical |
|
5 |
Anti-drip system |
Industry double cut off with positioning suction function |
|
6 |
Pressure feedback function |
Zhonghu pressure feedback system |
|
7 |
Sliding device |
Taiwan SSGB |
|
8 |
Power |
Shanghai Hengfu or Taiwan Mingwei |
|
9 |
Relay |
Omron |
1, the user interface touch screen, simple operating procedures for simple procedures
2, PLC, power, drive and other imported products
3, rail, Taiwan imported rails to ensure operational accuracy
| Parameters:
|
NO. |
Program |
Description |
|
1 |
Working power |
AC220V,50-60HZ,1000W |
|
2 |
A plastic head |
1 or 4 |
|
3 |
Proportionof plastic |
5: 1~1:1 and any fixed proportion adjustable |
|
4 |
Input pressure |
0.5—0.65Mpa （0.5—6.5kgf/cm2） |
|
5 |
Programming mode |
Teaching programming |
|
6 |
Capacity |
approximately 380m/H (single) 約approximately 1200-1600m/H |
|
7 |
Application product |
Soft、hard light bar in 5050MM |
|
8 |
Machine travel |
Straight.Vertical,square,point |
|
9 |
Device structure |
Super strong steel structure bracket, several ribs on the chassis |
|
10 |
Color |
white powder's spraied by static electricity |
|
11 |
Fixed way of slide part |
High precision and stable platform, the installation of fixed balance device |
|
12 |
XYZ axis operate device |
Dedicated four-layer linear slide, high-speed ultra-stable operation |
|
13 |
Dimensions |
5050MM*300MM*30MM |
|
14 |
Software system |
Zhonghu R&D independently ,domestic counterparts currently have software anti-misuse function, anti-fade automatic shutdown irrigation management software |
|
15 |
Control System |
Japan's Panasonic PLC, Kunlun-state touch screen, brand motion control card |
|
16 |
Bujin motor |
YAKO Original motor |
|
17 |
High precision metering gear pump |
Taiwan precision adjustment |
|
18 |
Machine motion tolerance |
±0.1MM |
|
19 |
Spitting accuracy |
±0.5% |
|
20 |
Flow detection |
Alarm when B Glue flow is too large or too small |
|
21 |
A flow head cutting system |
Double |
|
22 |
AB Cut off the system |
Zhonghu R&D independently |
|
23 |
Suction device |
Double |
|
24 |
Glue viscosity |
MAX≤2000-3500 |
|
25 |
Mixing method |
dynamic |
|
26 |
Mixed Material |
Imported PE |
|
27 |
Stirring speed |
MAX 50R/S |
|
28 |
Dynamic sealing material |
F4 Corrosion-resistant high wear-resistant soft material |
|
29 |
sealed muzzle pressure |
MAX≤3.5Mpa |
|
30 |
AB Level display |
Alarm when below the liquid level |
|
31 |
Glue bucket heating |
The use of imported high-quality safety factor reliable silicone film fever, super protection |
|
32 |
A Barrel capacity |
10L |
|
33 |
B Barrel capacity |
10L |
|
34 |
Vacuum |
Yes |
|
35 |
Filtering system |
Four |
|
36 |
Timing belt |
Double belt |
| Characteristics of gluing part：
1. With plastic, plastic irrigation integration, automatic operation, a machine to achieve two functions.
2. Proportional adjustment, plastic volume adjustable. Ready to use at any time, with high precision, on-demand ratio, saving glue.
3. Simple and convenient operation, the program is simple to edit, free cleaning, easy disassembly, A B directly into the two glue into the corresponding two barrels, when filling with plastic, the workers only need to press the switch can be.
4. According to the glue performance, A rubber bucket with a heating device, B plastic bucket sealed good to prevent volatile, liquid level sensor device, when the glue below this level automatically alarm, add the corresponding glue
5. Easy to clean, AB glue mixing part of the glue only the mixing tube, so the cleaning part of the mixing tube only, the other parts are not cleaned, if the get off work or to stop for a period of time only need to remove the mixing tube, To the cleaning agent or immediately clean on the line, no supplies.
